Connection Methods

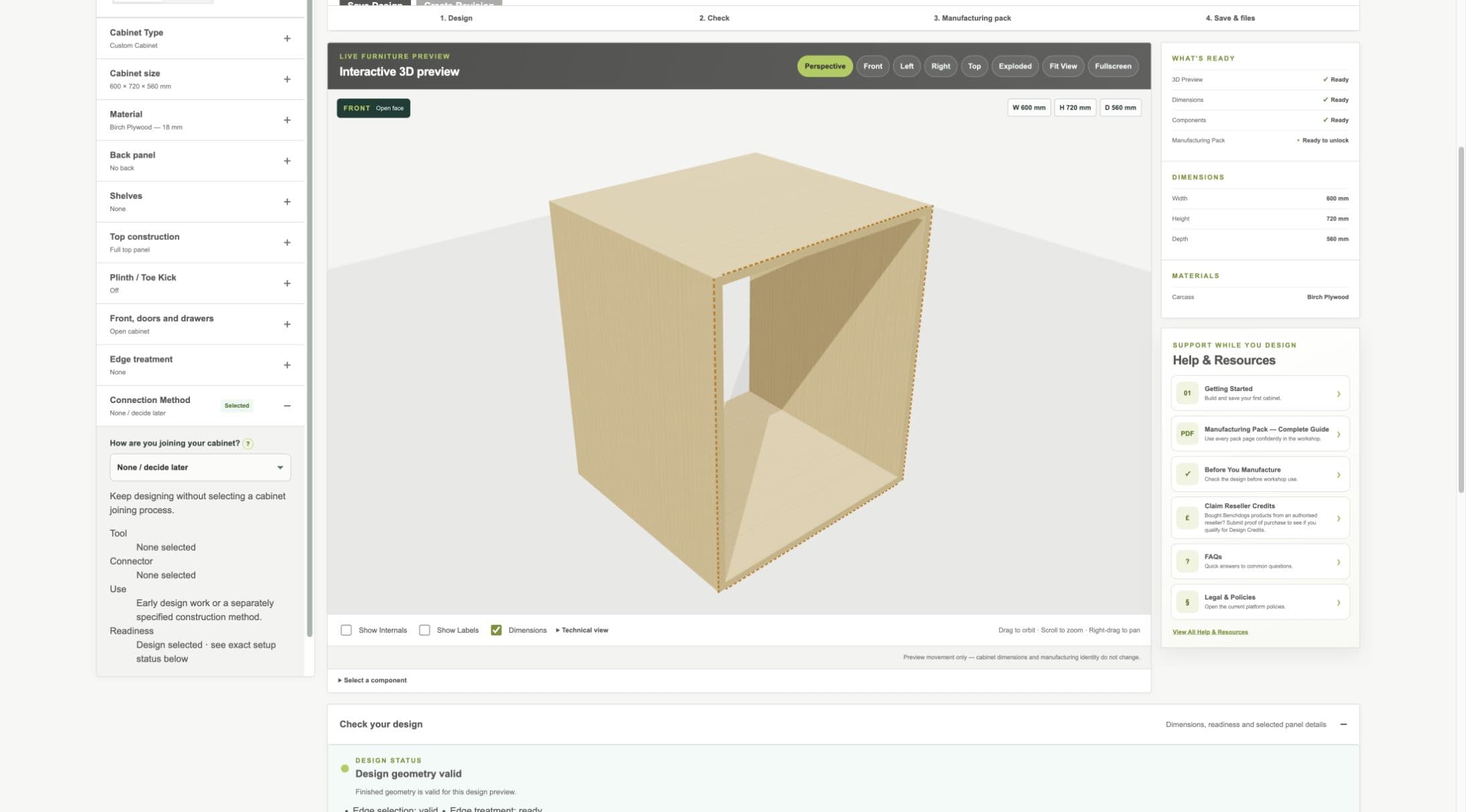

Choosing a method

What it is: the process used to join related cabinet parts. You may choose None / decide later while designing, or select a supported process to receive deterministic longitudinal fixing centres.

What the Designer provides: related part intent, fixing-centre positions and quantity where the current Benchdog layout supports them. What you check: connector, cutter, bore, groove, plunge, jig, screw, adhesive and machine settings for your actual material and application.

123

Current method guide

The current selectable methods are described below in plain language. A name does not make manufacturer-specific machining automatic.

Festool DOMINO DF500

Loose-tenon cabinet joints. The Designer provides the approved Benchdog longitudinal layout; choose the DOMINO and machine setup for the material and joint.

Lamello Clamex P-14

Detachable P-System joints. Use the required P-System process and access opening from Lamello's instructions.

Lamello Tenso P-14

Self-clamping glued P-System joints. Confirm groove orientation, adhesive and process.

Lamello Divario P-18

Invisible slide-in shelf or divider joints. Confirm grooves, bores and insertion direction.

Confirmat screws

Cabinet screws needing the exact selected screw and matching stepped drilling setup.

Generic dowels

Glued dowel joints. Choose dowel diameter, depth, jig or boring process and adhesive.

Mafell DuoDoweler DDF 40

Machine-specific paired dowels. The machine's 32 mm pair spacing is distinct from the longitudinal pair positions.

Lamello wooden biscuits

Glued plate joints made with a compatible biscuit groove process. Choose biscuit size and adhesive.

Standard screws

Generic screw intent. Choose a screw, pilot, countersink and driving setup suitable for the material.

Pocket Holes

Angled screw joints. A pocket-hole jig and suitable screws are required; follow the selected manufacturer's settings.

Häfele Minifix / Rafix

Knock-down cam or housing-and-bolt systems. Select a current matched product set and use its boring instructions.

Other cam-and-dowel system

Generic design intent only until an exact matched system and drilling process are selected.

Festool DOMINO DF500

Loose-tenon cabinet joints made with the DF 500.

Tool / fixing

Festool DF 500 and a suitable DOMINO

What the Designer calculates

The approved Benchdog 37 mm end-centre, symmetric 150–175 mm target and 205 mm maximum automatic interval layout.

What the customer confirms

Confirm the DOMINO size, material suitability, fence, cutter, plunge and mortise-width setup from Festool instructions.

Datum / fixing centres

Centres are measured from the labelled part/joint datum shown in the current Manufacturing Pack.

Lamello Clamex P-14

A detachable P-System connector.

Tool / fixing

Lamello P-System process and Clamex P-14

What the Designer calculates

Deterministic longitudinal fixing centres and participating-part intent.

What the customer confirms

Confirm the exact groove, access opening, insertion orientation and current Lamello process.

Datum / fixing centres

Centres are measured from the labelled part/joint datum shown in the current Manufacturing Pack.

Lamello Tenso P-14

A self-clamping glued P-System connector.

Tool / fixing

Lamello P-System process, Tenso P-14 and adhesive

What the Designer calculates

Deterministic longitudinal fixing centres and participating-part intent.

What the customer confirms

Confirm groove orientation, connector installation, adhesive and activation from Lamello instructions.

Datum / fixing centres

Centres are measured from the labelled part/joint datum shown in the current Manufacturing Pack.

Lamello Divario P-18

An invisible slide-in connector for shelves and dividers.

Tool / fixing

Lamello-approved Zeta/P-System tooling and Divario P-18

What the Designer calculates

Deterministic longitudinal fixing centres and assembly intent.

What the customer confirms

Confirm grooves, bores, insertion direction and all product-specific setup.

Datum / fixing centres

Centres are measured from the labelled part/joint datum shown in the current Manufacturing Pack.

Lamello Wooden Biscuits

A glued plate-joint method using compressed wooden biscuits.

Tool / fixing

Compatible biscuit jointer, selected biscuit and adhesive

What the Designer calculates

Deterministic longitudinal fixing centres.

What the customer confirms

Choose biscuit size and verify groove depth, fence and adhesive from the selected system instructions.

Datum / fixing centres

Centres are measured from the labelled part/joint datum shown in the current Manufacturing Pack.

Generic Dowels

Round glued dowels used to align and join cabinet parts.

Tool / fixing

Dowel jig or boring machine, dowels and adhesive

What the Designer calculates

Deterministic longitudinal fixing centres.

What the customer confirms

Choose dowel diameter and length, then confirm bore diameter, depth, across-thickness datum and adhesive.

Datum / fixing centres

Centres are measured from the labelled part/joint datum shown in the current Manufacturing Pack.

Mafell DuoDoweler DDF 40

Machine-specific paired dowel joints.

Tool / fixing

Mafell DDF 40 and matched dowels

What the Designer calculates

Longitudinal pair locations; the machine's internal 32 mm pair spacing stays distinct.

What the customer confirms

Confirm cutter, fence, depth and dowel setup from current Mafell instructions.

Datum / fixing centres

Centres are measured from the labelled part/joint datum shown in the current Manufacturing Pack.

Confirmat Screws

Cabinet screws intended for board construction.

Tool / fixing

Matched Confirmat screw and stepped drilling setup

What the Designer calculates

Deterministic longitudinal fixing centres.

What the customer confirms

Select the exact screw for the material and confirm pilot, stepped bore, countersink and driving setup.

Datum / fixing centres

Centres are measured from the labelled part/joint datum shown in the current Manufacturing Pack.

Pocket Holes

Angled screw joints made with a pocket-hole jig.

Tool / fixing

Pocket-hole jig and suitable screws

What the Designer calculates

Deterministic Benchdog longitudinal fixing centres without tying the process to one brand.

What the customer confirms

Choose a jig and screw suitable for the actual material thickness and follow that manufacturer's settings.

Datum / fixing centres

Centres are measured from the labelled part/joint datum shown in the current Manufacturing Pack.

Standard Screws

Generic screw-fixing intent where the customer supplies the exact fixing.

Tool / fixing

Suitable screws, pilot/countersink tools and driver

What the Designer calculates

Deterministic longitudinal fixing centres.

What the customer confirms

Confirm screw type, length, edge distance, pilot, countersink and material suitability.

Datum / fixing centres

Centres are measured from the labelled part/joint datum shown in the current Manufacturing Pack.

Häfele Minifix

A knock-down cam-and-bolt furniture connector system.

Tool / fixing

A complete compatible Minifix product set and matching boring process

What the Designer calculates

Deterministic longitudinal fixing centres and system intent.

What the customer confirms

Select the exact current components and use their matched drilling template; product families are not interchangeable by name alone.

Datum / fixing centres

Centres are measured from the labelled part/joint datum shown in the current Manufacturing Pack.

Häfele Rafix

A housing-and-bolt knock-down connector system.

Tool / fixing

A complete compatible Rafix product set and matching boring process

What the Designer calculates

Deterministic longitudinal fixing centres and system intent.

What the customer confirms

Select the exact current components and confirm all housing, bolt and drilling dimensions.

Datum / fixing centres

Centres are measured from the labelled part/joint datum shown in the current Manufacturing Pack.

Other Cam-and-Dowel System

Generic intent for another matched cam-and-dowel family.

Tool / fixing

Customer-selected compatible connector set and tooling

What the Designer calculates

Deterministic longitudinal fixing-centre intent only.

What the customer confirms

Supply and verify all critical product dimensions and follow the selected manufacturer's instructions.

Datum / fixing centres

Centres are measured from the labelled part/joint datum shown in the current Manufacturing Pack.

Connection centres

A connection centre is the measured position along a joint where the selected joining operation belongs. The Designer calculates these positions automatically for the basic V1 workflow; customers do not have to choose spacing for every connector.
